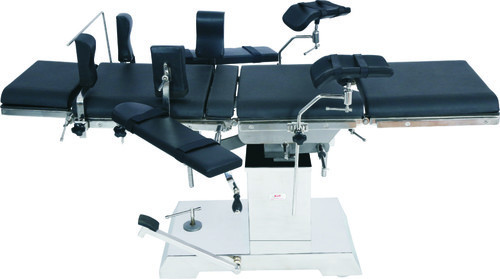

HYDRAULIC O.T. TABLE
FEATURES:
Hydraulic and Mechanical Operated.
Centric base made from high quality stainless steel.
Leg & Head section are interchangeable.
Centric pillars, Stainless fitting.
Detachable head, leg and pelvic section.
inbuilt kidney bridge.
Base and cover made of attractive, easy to clean stainless steel.
Sophisticated mechanics provide smooth, stepless articulation of the table top for precise patient
positioning.
TECHNICAL SPECIFICATION:
Top dimension: L 1900mm x W 520mm
Height adjustment: 762 mm - 1000 mm
Trendelenburg / Reverse: 30° / 25°
Lateral tilt: 20° / 20°
Kidney elevator: 150 mm
Back Rest (up / down): 80° / 25°
Leg Rest (up / down): 15° / 90°
Head Rest (up / down): 20° / 60°
Patient Weight Capacity: 250 kgs

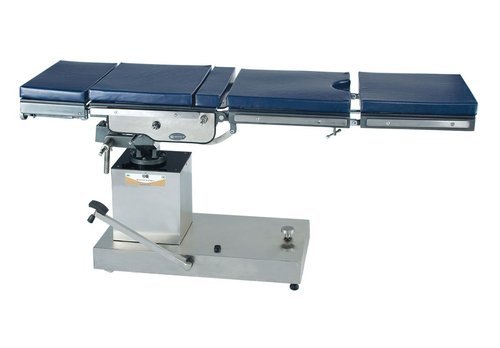

C-ARM HYDRAULIC O.T. TABLE
FEATURES:
Hydraulic and Mechanical Operated.
The base is eccentric for trouble-free C-ARM movements.
Leg & Head section are interchangeable.
Ecentric pillars, Stainless fitting.
Detachable head, leg and pelvic section.
inbuilt kidney bridge.
Five sectional radio-translucent.
Base and cover made of attractive, easy to clean stainless steel.
Sophisticated mechanics provide smooth, stepless articulation of the table top for precise patient positioning.
TECHNICAL SPECIFICATION:
Top dimension: L 1900mm x W 520mm
Height adjustment: 762 mm - 1000 mm
Trendelenburg / Reverse: 30° / 25°
Lateral tilt: 20° / 20°
Kidney elevator: 150 mm
Back Rest (up / down): 80° / 25°
Leg Rest (up / down): 15° / 90°
Head Rest (up / down): 20° / 60°
Patient Weight Capacity: 250 kgs
